TS6200 TRANSMITTER

PRODUCT INFORMATION

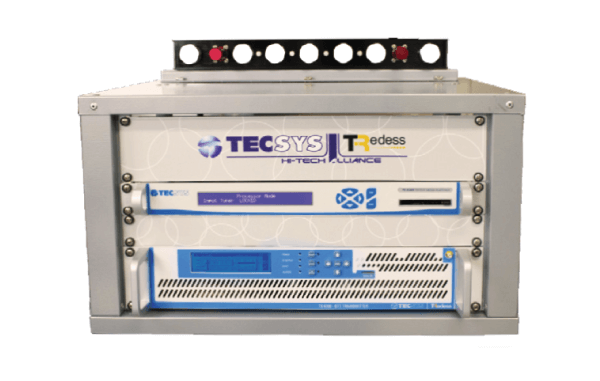

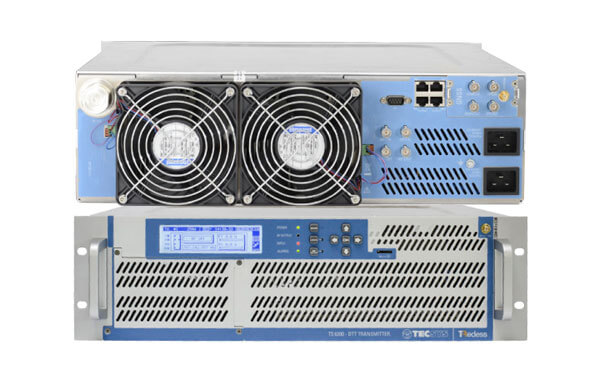

The TS6200 Digital TV transmitter line is a family of UHF transmitters that operate on ISDB-T standard. Prepared for MFN or SFN networks, it covers a wide range of output power from 5W to 2000W and incorporates UWB DOHERTY technology for models above 350W. There are several characteristics such as interactive and friendly user interface, low noise level, economic efficiency, MER <38 dB + 3 dB, multiple inputs (ASI / IP), compact dimensions, complete monitorable, remote software update, among others. Models also available: GAP FILLER, Retransmitter and Transposer.

TECHNICAL DOCUMENTATION

Technical Information (Portuguese)
Technical Information (Portuguese) Rack
Installation Guide (Portuguese) BT
Installation Guide (Portuguese) MT
Catalog (Portuguese)

SOFTWARE

Software name Version Size Release date of Download
